Automatic spoon honey packing machine/honey filling sealing machine Product description:
1. Frame part: It is welded with high-quality carbon steel and is equipped with solid bolts in contact with the ground.
2. Transmission system: motor, reducer, cam divider, template, transmission chain, etc.
3. The system is controlled by PLC, and the synchronization control action is completed by sending a signal when the template stops.
4. Filling system: The storage tank is made of stainless steel 304, the cylinder stroke works, piston type quantitative filling, non-contact filling, the filling volume can be adjusted freely, the quantitative is accurate, and it has a liquid level control device.

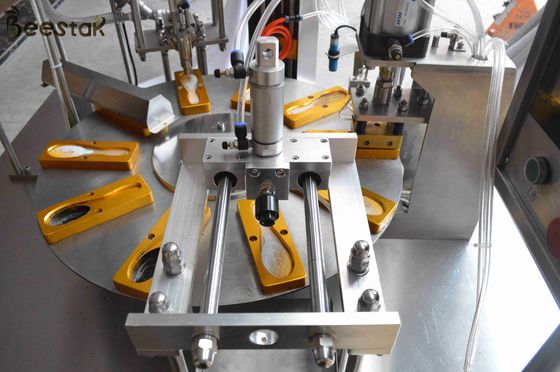

5. Film correction system: Photoelectric eye tracking automatically corrects the film pattern and the cup mouth. 6. Film release system: a sheet of film (vacuum generator) composed of a rotating cylinder, a mechanical arm, a suction cup, etc.
7. Sealing system: It adopts constant temperature (intelligent temperature control) hot pressing for one-time sealing, and the sealing head is a combination of copper and aluminum, which is easy to replace. The sealing pressure is adjustable.
8.Automatic filling and sealing machine adopts chain stepping transmission mechanism. Can work continuously for 24 hours. The use of anti-corrosion materials such as stainless steel, aluminum alloy, and copper conforms to the Food Sanitation Law. The stable and reliable performance is the main equipment of the ideal beverage production line. This machine can automatically (manually) put the cup.
