PLC Control AC 380V Automatic Honey Spoon Filling Machine

PLC Control AC 380V Automatic Honey Spoon Filling Machine

Brand Name: Bee star
MOQ: 1 pcs
Price: US$7980/ pcs---US$9277/pcs
Packaging Details: carton backage
Payment Terms: T/T, Western Union, L/C
Detail Information
Place of Origin:
CHINA
Supply Ability:
100pcs per month
High Light:

AC 380V Honey Spoon Filling Machine

,

PLC Control Honey Spoon Filling Machine

Product Description

Automatic spoon honey packing machine/honey filling sealing machine



Product description:




1. Frame part: It is welded with high-quality carbon steel and is equipped with solid bolts in contact with the ground.



2. Transmission system: motor, reducer, cam divider, template, transmission chain, etc.



3. The system is controlled by PLC, and the synchronization control action is completed by sending a signal when the template stops.



4. Filling system: The storage tank is made of stainless steel 304, the cylinder stroke works, piston type quantitative filling, non-contact filling, the filling volume can be adjusted freely, the quantitative is accurate, and it has a liquid level control device.



5. Film correction system: Photoelectric eye tracking automatically corrects the film pattern and the cup mouth.



6. Film release system: a sheet of film (vacuum generator) composed of a rotating cylinder, a mechanical arm, a suction cup, etc.



7. Sealing system: It adopts constant temperature (intelligent temperature control) hot pressing for one-time sealing, and the sealing head is a combination of copper and aluminum, which is easy to replace. The sealing pressure is adjustable.



8.Automatic filling and sealing machine adopts chain stepping transmission mechanism. Can work continuously for 24 hours. The use of anti-corrosion materials such as stainless steel, aluminum alloy, and copper conforms to the Food Sanitation Law. The stable and reliable performance is the main equipment of the ideal beverage production line. This machine can automatically (manually) put the cup.

                                              Technical parameter:
voltage(V/Hz) AC 380/50
Heat sealing
power(W)
3300
Sealing speed About 500 pcs/hour (depending on the material and filling quantity, as well as the speed of manual spoon placement)
Filling accuracy ±1.5%
Temperature control
range
0-400"C
Covering material PE PP PET/PE
Dimensions 1320X 1230X 1750mm (LXWXH)
Net weight (kg) 430

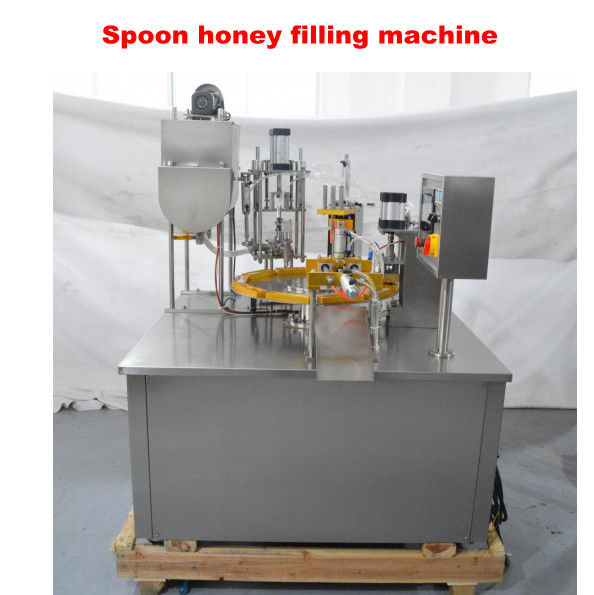

PLC Control AC 380V Automatic Honey Spoon Filling Machine 0

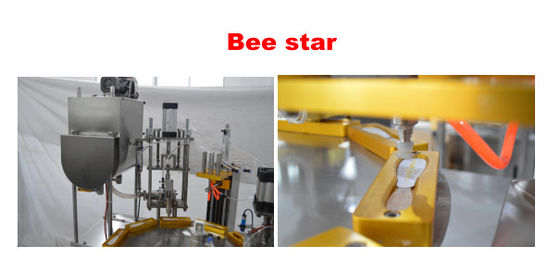

PLC Control AC 380V Automatic Honey Spoon Filling Machine 1PLC Control AC 380V Automatic Honey Spoon Filling Machine 2
